Universal Flash Storage (UFS) Test Executive™
Test Executive provides complete protocol debug and analysis of UFS devices, including deep packet inspection, stress testing, custom test case execution, and CTS and UFSA® interoperability verification.
Deep packet inspection performed with unique protocol-aware Rule Checker engine with full protocol decode and rule checking against the JEDEC JESD220B UFS 2.0 spec and JESD224 UFS CTS.
Perform extensive stress testing executing hundreds of thousands of tests with multiple packet inspection rules. Execute any test or set of tests in ascending, descending or random order, looped in nest order with flexibility to specify the nesting order by LUN, speed, link width or test case.
Design custom test cases to test corner cases or introduce errors for margin, stress, or error recovery testing. Test Case Builder allows complex test case construction, with virtually unlimited transactions, device control, and command and response packet construction. Local and global variables and run conditions are used to create test case conditions.
Perform compliance testing to the JEDEC JESD224 Universal Flash Storage (UFS) Protocol CTS, to verify compliance with JESD220B UFS Standard version 2.0.
| Product | UFS20COMP |
| Description | UFS Test Executive |
| Pricing | Contact sales@protocolinsight.com |
| Availability | Release 1.3 – March 15, 2016 |
| Compatibility | Conformance: JESD220B v2.0 Compliance: JESD224 |
| Data Sheet | View Data Sheet (PDF) |
[/one_second]
[divider height=”30″ line=”1″]
[one_second]
[/one_second]
[one_second]

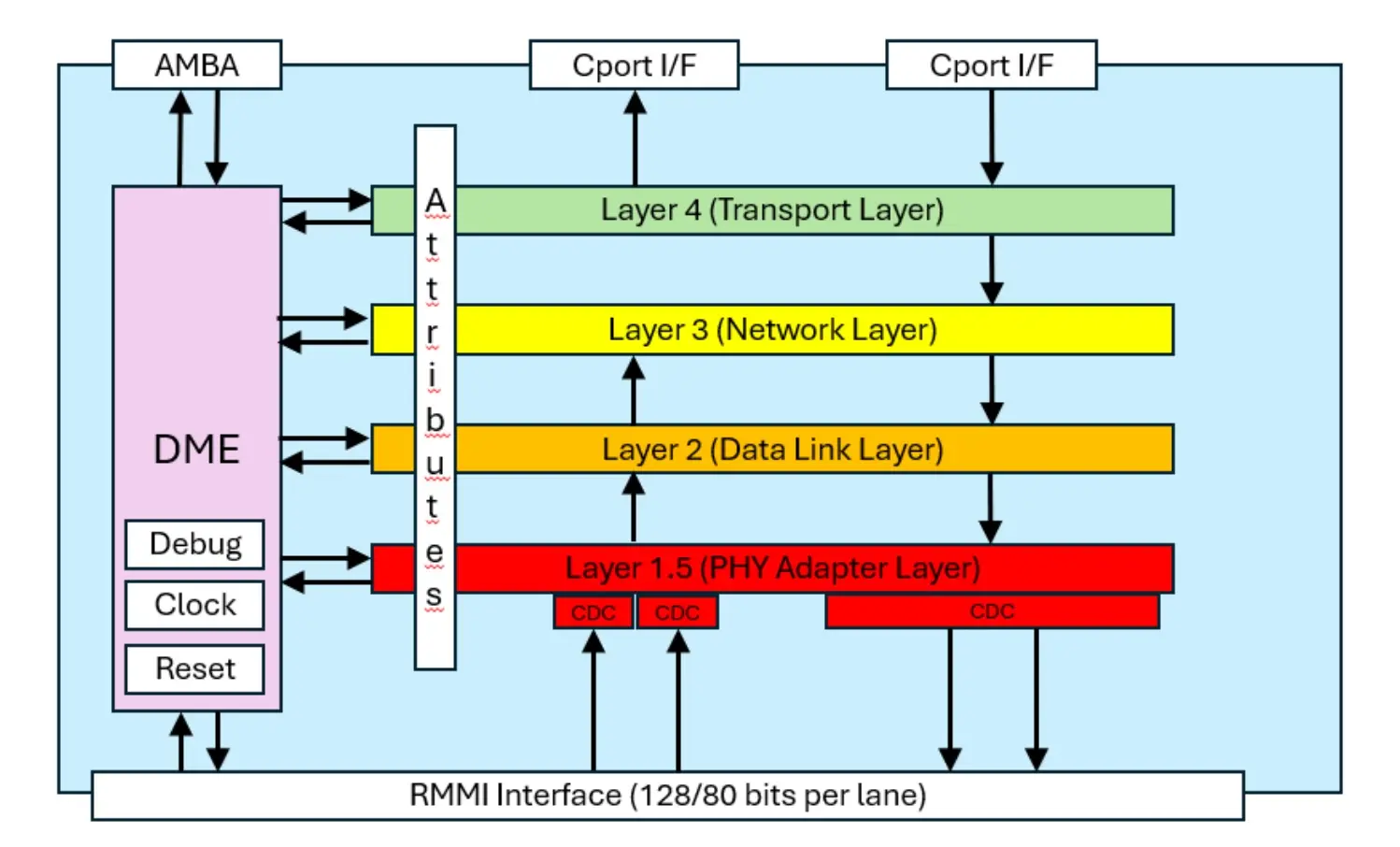

Unified Protocol (UniPro) Test Executive™
UNI16COMP Test Executive provides complete protocol debug and analysis of UniPro devices. Capabilities include UniPro v1.0 Conformance Test Suite (CTS) verification, intelligent analysis of protocol sequences and packet characteristics, link stimulus, stress testing, custom test case creation and statistical analysis.
Intelligent Trace Validation analyzes native bidirectional link traffic, performing protocol sequence and packet inspection rule checking.
UniPro v1.6 and v1.61 Conformance Test Suite (CTS) verification
Stimulus mode creates specific traffic on the link or puts the DUT into a known state.
Stress testing executes hundreds of thousands of tests automatically. Stop after any number of loops or failures.
Custom test cases test corner cases or introduce errors for margin, stress, or error recovery testing.
Statistics window provides an overview of trace characteristics in CTS and Trace Validation modes, enabling sum, filter and sort by various datatypes.
| Product | UNI16COMP |
| Description | UniPro Test Executive |
| Pricing | Contact sales@protocolinsight.com |
| Availability | Release 1.1 – March 2, 2016 |
| Compatibility | Supports MIPI® UniPro Standard v1.6 and v1.61 |
| Test Executive Data Sheet |
View data sheet (PDF) |
| Trace Validation Builder Data Sheet |
View data sheet (PDF) |
[/one_second]
[divider height=”30″ line=”1″]
[one_second]
[/one_second]
[one_second]
Protocol Insight™ Greybus Test Executive™
Greybus Test Executive offers protocol debug, analysis, interoperability verification and compliance testing of the Greybus application layer protocol used in Google Project Ara phones.
Supports the Control protocols for module connection management and the GPIO and I2C bridged PHY protocols.
Deep packet inspection performed with unique protocol-aware Rule Checker engine with protocol decode and rule checking against the Greybus v0.11 specification and CTS v0.2.
Perform stress testing executing thousands of tests with multiple packet inspection rules. Execute any set of tests in ascending, descending or random order, with flexibility to specify the nested loop order by CPort, speed, link width or test case.
Design custom test cases to test corner cases or introduce errors for margin, stress, or error recovery testing. Test Case Builder™ allows complex test case construction, with device control and request and response message construction. Local and global variables and run conditions are used to create test case conditions.
Combine with Protocol Insight’s UniPro Test Executive for complete protocol debug and verification of Project Ara module interoperability.
| Product | GREYCOMP |
| Description | Greybus Test Executive |
| Pricing | Contact sales@protocolinsight.com |
| Availability | Release 1.0 – October 30, 2015 |
| Compatibility | Supports Greybus v0.11 |
| Data Sheet | Contact sales@protocolinsight.com |
[/one_second]
[divider height=”30″ line=”1″]
[one_second]
[/one_second]
[one_second]
Serial Protocol and MIPI Design Consulting Services
Protocol Insight offers system architecture, integration and digital logic design services and consulting for serial protocol designs.
